| Model: 999-9966-200 Specifications |
| Description |
RoboSHOT IW Clear Glass OneLINK Bridge System - Black |

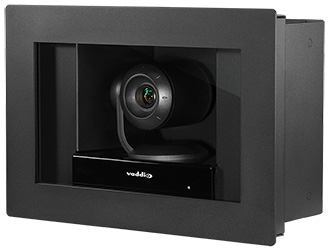

| RoboSHOT IW (In-Wall) PTZ Camera |
| Image device |
1/2.8 Exmor® CMOS Sensor |
| Pixels |
2.14 million (effective), 2.38 million (total) |
| Max. resolution |
1080p/60 |
| IP (H.264) RTSP video resolutions |
1080p 30/25/15; 720p 60/30/25/15; 4CIF (704x576) 60/30/25/15; 480p 60/30/25/15; 640x480 60/30/25/15; 360p 60/30/25/15; CIF (352x288) 60/30/25/15 |
| USB 3.0 (UVC) video resolutions (via OneLINK Bridge) |
USB 3.0 and USB 2.0 - uncompressed |
| Horizontal FOV |
73.0° wide end to 6.6° tele end |
| Zoom |
10x optical zoom (12x in super wide mode) |
| Min. working distance |
10mm (wide), 800mm (tele) |
| Pan/tilt range |
Pan: +/- 31 degrees, Tilt: +18/-30 degrees |
| Min. illumination |
0.4 lx (F1.6, AGC on, 1/30 s) High Sensitivity Mode Color: 0.1 lx (F1.6, AGC on, 1/30 s) |
| Aperture/detail |
16 steps (accessible through external control) |
| Gain |
Auto/Manual |
| Backlight compensation |
On/Off |
| White balance |
Auto, one-push, manual |
| Wide dynamic range |
Yes |
| Focusing system |
Auto/Manual |
| Remote management |
RS 232 API: Modified VISCA; Telnet Serial Command API; browser-based user interface for network set-up, firmware updates and network management; Vaddio DocCAM IR Remote |
| Power |
<25W (PoE+) via OneLINK |
| S/N Ratio |
>50 dB |
| IP streaming |
RTSP format with H.264 compression with AAC audio compression when used with advanced OneLINK interfaces |
| Noise reduction |
On/Off, 6 steps |
| Compatible Joystick and Video Control Consoles |
ProductionVIEW, Precision Camera Controller, ProductionVIEW HD-SDI MV, AV Bridge MATRIX PRO, PCC Premier |
| Interfaces |
HDBaseT |
| Dimensions (WxHxD) |
15x10x5 in (38.1x25.4x12.7 cm) |
| Operating temperature |
0°C to 40°C (32°F to 104°F) |
| Operating humidity (relative) |
20% to 80% RH |
| Storage temperature |
-20°C to +60°C (-4°F to 140°F) |
| Storage humidity (relative) |
10% to 95% RH |

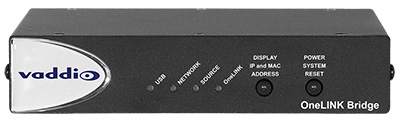

| OneLINK Bridge |
| Video outputs |
Simultaneous HDMI, USB 3.0 and HDSDI |
| Resolution and frame rate |
HDMI: Up to 2160p/30
USB: Up to 1080p/60
HD-SDI: Up to 1080p/60 |
| Audio inputs |
Two mic/line-level channels with noise/echo cancellation; phantom power available |
| Audio outputs |
Two balanced line-level audio outputs |
| Mixing |
6 x 10 audio mixer; audio is routable through all outputs |
| USB 3.0 Streaming |
Uncompressed video with PCM audio |
| IP Streaming |
Passes the stream from the camera (or other source), if enabled. |
| Control Features |
Web interface for configuration via browser
Telnet API for third-party external control
USB Human Interface Device (HID) for room audio controls |
| Operating Environment |
32°F to 104°F (0 °C to +40°C), 15% to 80% relative humidity, non-condensing |
| Storage Environment |
-4°F to 140°F (-20° to +60° C), 15% to 80% relative humidity, non-condensing |
| Dimensions |
Height 1.72 in. (4.4 cm); Width 8.375 in (21.3 cm); Depth 6.0 in. (15.2 cm) |
| Weight |
3.3 lb (1.5 kg) |
| Power |
48 VDC, 1.36 A |
