Model: 999-9965-880 Specifications |
Description |

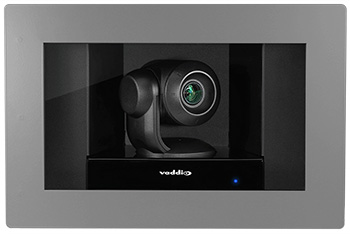

RoboSHOT IW Smart Glass PTZ Camera |
Camera & Image |
Image device |
1/2.8 Exmor® CMOS Sensor |
Pixels |
2.14 million (effective), 2.38 million (total) |
Max. resolution |
1080p/60 |
IP (H.264) RTSP video resolutions |
1080p 30/25/15; 720p 60/30/25/15; 4CIF (704x576) 60/30/25/15; 480p 60/30/25/15; 640x480 60/30/25/15; 360p 60/30/25/15; CIF (352x288) 60/30/25/15 |
USB 3.0 (UVC) video resolutions (via OneLINK Bridge) |
USB 3.0 and USB 2.0 - uncompressed |
Horizontal FOV |
73.0° wide end to 6.6° tele end |
Zoom |
10x optical zoom (12x in super wide mode) |
Min. working distance |
10mm (wide), 800mm (tele) |
Pan/tilt range |
Pan: +/- 31 degrees, Tilt: +18/-30 degrees |
Min. illumination |
0.4 lx (F1.6, AGC on, 1/30 s) High Sensitivity Mode Color: 0.1 lx (F1.6, AGC on, 1/30 s) |
Aperture/detail |
16 steps (accessible through external control) |
Gain |
Auto/Manual |
Backlight compensation |
On/Off |
White balance |
Auto, one-push, manual |
Wide dynamic range |
Yes |
Focusing system |
Auto/Manual |
Remote management |
RS 232 API: Modified VISCA; Telnet Serial Command API; browser-based user interface for network set-up, firmware updates and network management; Vaddio DocCAM IR Remote |
Power |
<25W (PoE+) via OneLINK |
S/N Ratio |
>50 dB |
IP streaming |
RTSP format with H.264 compression with AAC audio compression when used with advanced OneLINK interfaces |
Noise reduction |
On/Off, 6 steps |
Compatible Joystick and Video Control Consoles |
ProductionVIEW, Precision Camera Controller, ProductionVIEW HD-SDI MV, AV Bridge MATRIX PRO, PCC Premier |
Physical & Environmental |
Interfaces |
HDBaseT |
Dimensions (WxHxD) |
15x10x5 in |
Operating temperature |
0°C to 40°C (32°F to 104°F) |
Operating humidity (relative) |
20% to 80% RH |
Storage temperature |
-20°C to +60°C (-4°F to 140°F) |
Storage humidity (relative) |
10% to 95% RH |
