| Model: 999-9965-180 Specifications |
| Description |

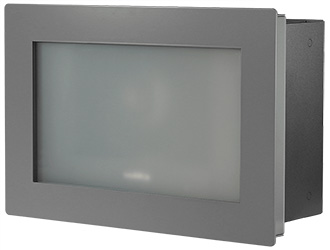

RoboSHOT IW Smart Glass PTZ Camera |
| Camera & Image |
| Image device |
1/2.8 Exmor® CMOS Sensor |
| Pixels |
2.14 million (effective), 2.38 million (total) |
| Max. resolution |
1080p/60 |
| IP (H.264) RTSP video resolutions |
1080p 30/25/15; 720p 60/30/25/15; 4CIF (704x576) 60/30/25/15; 480p 60/30/25/15; 640x480 60/30/25/15; 360p 60/30/25/15; CIF (352x288) 60/30/25/15 |
| USB 3.0 (UVC) video resolutions (via OneLINK Bridge) |
USB 3.0 and USB 2.0 - uncompressed |
| Horizontal FOV |
73.0° wide end to 6.6° tele end |
| Zoom |
10x optical zoom (12x in super wide mode) |
| Min. working distance |
10mm (wide), 800mm (tele) |
| Pan/tilt range |
Pan: +/- 31 degrees, Tilt: +18/-30 degrees |
| Min. illumination |
0.4 lx (F1.6, AGC on, 1/30 s) High Sensitivity Mode Color: 0.1 lx (F1.6, AGC on, 1/30 s) |
| Aperture/detail |
16 steps (accessible through external control) |
| Gain |
Auto/Manual |
| Backlight compensation |
On/Off |
| White balance |
Auto, one-push, manual |
| Wide dynamic range |
Yes |
| Focusing system |
Auto/Manual |
| Remote management |
RS 232 API: Modified VISCA; Telnet Serial Command API; browser-based user interface for network set-up, firmware updates and network management; Vaddio DocCAM IR Remote |
| Power |
<25W (PoE+) via OneLINK |
| S/N Ratio |
>50 dB |
| IP streaming |
RTSP format with H.264 compression with AAC audio compression when used with advanced OneLINK interfaces |
| Noise reduction |
On/Off, 6 steps |
| Compatible Joystick and Video Control Consoles |
ProductionVIEW, Precision Camera Controller, ProductionVIEW HD-SDI MV, AV Bridge MATRIX PRO, PCC Premier |
| Physical & Environmental |
| Interfaces |
HDBaseT |
| Dimensions (WxHxD) |
15x10x5 in (38.1x25.4x12.7 cm) |
| Operating temperature |
0°C to 40°C (32°F to 104°F) |
| Operating humidity (relative) |
20% to 80% RH |
| Storage temperature |
-20°C to +60°C (-4°F to 140°F) |
| Storage humidity (relative) |
10% to 95% RH |
| OneLINK HDMI |
| Video Support |
HDMI resolutions up to 1080p/60 for RoboSHOT HDMI cameras and 2160p/30 for the future. |
| RS-232 Support |
Pass-through |
| Ethernet Support |
Pass-through |
| Camera Power Support |
12 VDC, 3 Amp from EZIM to Camera. |
| Cabling Distances |
328’ (100m) over Cat-5e (Best Practices - When in doubt of EMI or RF interference in the area that OneLINK is being installed, use shielded Cat-6 cable). |
| OneLINK Interface Power Supply |
48 VDC, 1.36 Amp |
| Connectors on OneLINK Interface |
OneLINK Port on Shielded RJ-45F, HDMI Output Receptacle, Ethernet on shielded RJ-45F with LEDs, RS-232 on shielded RJ-45 connector, Power in on 5.5mm OD x 2.5mm ID Coaxial connector (positive Center), IR Forward on 3-pin Phoenix-style connector |
| OneLINK Interface Dimensions (H x W x D - not including space-time) |
1.72” (43.7mm) H x 8.375” (212.7mm) W x 6.00” (152.4mm) D |
| OneLINK Interface Weight |
1.553 lbs. (703.1g) |
| Operating Temperature/Humidity |
0°C (32°F) to 40°C (104°F), 20% to 80% Relative Humidity |
