| Model: 999-9675-400 Specifications |
| Description |
RoboSHOT 12 OneLINK Bridge System for Cisco SX Codecs |
| RoboSHOT 12 Camera |
| Image device |
1/2.8-Type Exmor®CMOS sensor |
| Pixels |
2.14 million (effective), 2.38 million (total) |
| Pan and tilt |
Pan ± 160°, tilt +90° -30°; pan and tilt speed 0.35°/sec to 120°/sec |
| Lens and horizontal FOV |
RoboSHOT 12 HDBT
Normal (default): 10X optical zoom, 67.3° (wide) to 7.6° (tele), f=3.8mm to 38.0mm, F1.8 to F3.4
Super Wide: 12X optical zoom, 73.0° (wide) to 6.6° (tele), f=3.91mm to 47.0mm, F1.8 to F3.4
RoboSHOT 30 HDBT
30X optical zoom, 65° (wide) to 2.3° (tele), F1.6 to F4.7 |
| Min. working distance |
10mm (wide), 0.8m (tele) |
| Min. illumination |
Recommended: 100+ lux |
| Gain |
Auto / Manual (28 steps) |
| Backlight compensation |
On/off |
| Aperture/detail |
16 steps |
| Focusing system |
Auto Focus / Manual Focus Mode / One Push Trigger Mode / Infinity Mode / Near Limit Mode |
| White balance |
Auto, ATW, Indoor, Outdoor, One-push, Manual |
| Sync system |
Internal |
| S/N ratio |
More than 50 dB |
| Noise reduction |
On/Off, 6 Steps |
| Power |
12 VDC, 3.0 A or PoE+ |
| Remote management |
IR Remote Commander, web interface, Telnet and RS-232 command APIs |
| Height |
6.9 in. (176 mm) |
| Width |
7.1 in. (179 mm) |
| Depth |
6.8 in. (172 mm) |
| Weight |
4.85 lbs.(2.2 kg) |
| Operating/storage temperature |
0°C to +40°C (32°F to 104°F) |
| Operating/storage humidity |
20% to 80% RH, non-condensing |

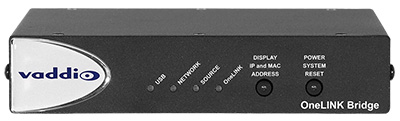

| OneLINK Bridge Interface |
| Video outputs |
Simultaneous HDMI, USB 3.0 and HD-SDI |
| Resolution and frame rate |
Up to 1080p/60 (full HD) |
| Audio inputs |
Two mic/line-level channels with noise/echo cancellation; phantom power available |
| Audio outputs |
Two balanced line-level audio outputs |
| Mixing |
10X8 audio mixer; audio is routable through all outputs |
| USB 3.0 Streaming |
Uncompressed video with PCM audio |
| IP Streaming |
RTSP format with H.264 video compression and AAC audio compression |
| Control Features |
Web interface for configuration via browser
Telnet API for third-party external control
USB Human Interface Device (HID) for room audio controls |
| Operating Environment |
32°F to 104°F (0 °C to +40°C), 15% to 80% relative humidity, non-condensing |
| Storage Environment |
-4°F to 140°F (-20° to +60° C), 15% to 80% relative humidity, non-condensing |
| Dimensions |
Height 1.72 in. (4.4 cm); Width 8.375 in (21.3 cm); Depth 6.0 in. (15.2 cm) |
| Weight |
1.7 lb (0.8 kg) |
| Power |
48 VDC, 1.36 A |
