Vaddio 999-5655-120 ProductionVIEWHD-SDI RS12 Bundle

Live video production promotion

Flexible, powerful and easy to use

The vaddio 999-5655-120 ProductionVIEW HD-SDI RS12 Bundle is perfect for high definition video production and live streaming. This bundle includes three (3) RoboSHOT cameras, one (1) award-winning ProductionVIEW HD-SDI system and three (3) POEs+ Injectors.

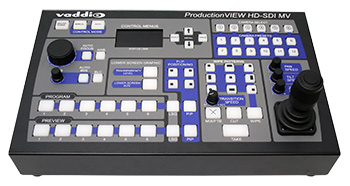

All-in-one camera control console

The ProductionVIEW™ HD-SDI MV is an all-in-one camera control console with HD-SDI/SDI video switching/mixing, a built-in multiviewer, lower screen graphics, and automated control functionality.

New Multi-View Input Screens allow the user to select between screen layouts that display four, five or six inputs. When setting up with four or five preview windows, the preset video thumbnails become larger on the bottom of the screen. In addition, the Preview and Program windows can be swapped on the multiviewer output.

With Vaddio’s™ TeleTouch™ touch screen monitors, all live video feeds can be selected and up to 12 video thumbnail presets can be created, recalled and stored by simply touching the monitor. The thumbnails are a snapshot of what the camera preset shot looks like, to make storing and recalling presets even easier. Simply touch a thumbnail and the camera will pan, tilt and zoom to that position. The Cut, Wipe and Fade buttons illuminate on the multiviewer display, giving a visual indication of which effect is active.

An additional capability of the system is Dual Bus Multiview output. This allows the user to switch between Preview and Program as discrete outputs - with one going to an IMAG Projector and the other going to a recording device.

All inputs are autosensing for video resolution, control and camera type. Video inputs include five HD-SDI/SDI (480i to 1080p) inputs on BNC connectors and a single DVI-I input on channel six that allows for multiple formats (DVI-D, YPbPr, RGBHV and HDMI) with 36 additional input resolutions.

Professional-class, high definition PTZ camera

Vaddio RoboSHOT HD-SDI cameras are professional-class, high definition PTZ cameras with remarkable image quality, exceptional color reproduction, and truly fine detail. With simultaneous HD-SDI and HDMI digital video outputs and Full HD IP Streaming (H.264) capabilities, this camera offers integrators, dealers and end users with incredible flexibility and price-performance benefit over similarly configured cameras available today.

The RoboSHOT 12 HD-SDI is awesome for small to medium-sized rooms, training rooms or classrooms and provides incomparable support for applications especially in small video studios, video conferencing, distance learning, lecture capture, and telepresence.

Major innovations of the RoboSHOT HD-SDI cameras include a PoE+, Gb Ethernet port, which allows the user to power the camera over a PoE+ network or with a PoE+ midspan power injector, and the built-in web server that gives the user camera control with a web browser from anywhere in the world over the IP network. Simply enter the camera’s streaming URL into any standards-based (H.264, RTSP format) media player to watch the IP stream and control RoboSHOT HD-SDI simultaneously. These features are perfect for remote management, network operating centers and overall IT control.

PoE+ midspan power injector

The Vaddio PoE+ Midspan Power Injector is IEEE 802.3at compliant with 2-event classification (802.3af backward compatible). It guarantees an output power of 30W and provides 25.5W at 100m (328’) distance. This devices also offers 10/100/1000 Mbps pass through data rates and plug-and-play installation.
