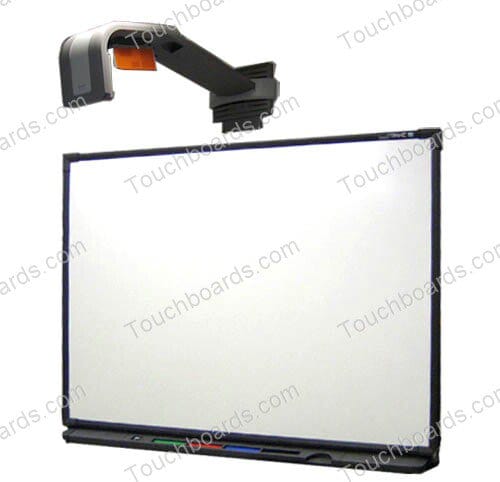

Interactive Whiteboard |
Pen Tray |
Optical sensors in the pen tray detect when you lift a pen or the eraser from the tray. LED lights show the active tool. |
Pens and Eraser |
A rectangular eraser and black, blue, red and green pens |
Resolution |
Touch resolution is approximately 4000 ? 4000. |
Screen Surface |
The hard-coated polyester surface is tear proof, optimized for projection, compatible with dry-erase markers and cleans easily with whiteboard cleaner. |
Digitizing Technology |
Resistive technology |
Frame Finish |
Two-tone gray (approximates Pantone? Charcoal Gray 18-0601 TPX) and Ultrasonic Chrome (approximates metallic Pantone 877C) |
Wall-Mount Bracket |
32" (81.3 cm) wide with five screws and drywall anchors to support a wall-mounted interactive whiteboard |
Projector Mounting Template |
The template ensures simple installation and accurate alignment between the Unifi 45 projector and your SMART Board 660 interactive whiteboard. |
Installation Instructions |
Do not use the SMART Board 660 interactive whiteboard instructions when installing the SMART Board 660i2 interactive whiteboard system. The installation instructions for the SMART Board 660i2 interactive whiteboard system are included with the Unifi 45 projector. |
Theft Prevention |
The SMART Board 660 interactive whiteboard features a pen tray locking feature and a Kensington lock on the pen tray. |
Size |
54 3/4" W x 41 5/8" H x 5 1/8" D
(139.1 cm ? 105.7 cm ? 13.0 cm) |
Active Screen Area |
51 1/4" W x 38 1/4" H
(130.2 cm ? 97.2 cm)
64" diagonal (162.6 cm) |
Weight |
21 lb. 14 oz. (9.9 kg) |
Shipping Size |
46" W x 64 1/2" H x 5 1/2" D
(116.8 cm x 163.8 cm x 14.0 cm) |
Shipping Weight |
35 lb. (15.9 kg) |
Unifi 45 Projector System |
System Components |
TDP-SB20 projector, boom mount with a limit strap (including a controlled-collapse feature), extended control panel (ECP), remote control and all necessary input cables from the ECP to the projector |
Image Adjustment |
Includes a focus lever and digital keystone correction |
Display Type |
True XGA 1024 x 768 projector |
Display Technology |
The projection engine uses DLP technology by Texas Instruments, providing brilliant color performance and quality Gamma 2.2 correction with Bright, Standard, and True Color modes. |
Brightness |
Estimated at 2000 lumens (typical) at a CCT of 6500 K by the IEC method |
Lamp Life |
2000 hours (High mode) or 3000 hours (Standard mode) |
Aspect Ratio |
4:3 native, with support for 16:9, 16:10 and 4:5 ratios |
Contrast Ratio |
2000:1 |
Video System Compatibility |
NTSC, NTSC 4.43, PAL, PAL60, PAL-B, PAL-N, PAL-M, SECAM |
Video Interface Compatibility |
Composite, S-video, and VESA RGB, with additional interface support for Component YPbPr and Component YCbCR inputs with the proper adapters (not included) |
Video Format Compatibility |
QVGA, VGA, SVGA, XGA, SXGA, SXGA+, UXGA |
Synchronization |
Auto image synchronization (auto tracking/frequency/position adjustment/source detect/ phase detect) |
Mounting Hardware |
Hardware is included for mounting the Unifi projector and the extended control panel to framed and solid walls. A safety tether and limit strap are included. |
Input/Output Connections |
Two HD DB15F connectors - RGB video input from computer and/or ECP via VGA connectors
HD DB15F connector - video output
4-pin mini-DIN connector - S-video input
One pair of audio jacks (RCA, stereo) reserved for use with S-video
Composite video connector - RCA-style video input
One pair of audio jacks (RCA, stereo) reserved for use with composite video
3.5 mm stereo jack - audio input with dual signal analog mixer
3.5 mm stereo jack - audio output to connect speakers
DB9M - serial (RS-232) for power and communication to the ECP |
Projector Noise |
33 dBA (High mode) or 28 dBA (Standard mode) |
Power Requirements |
100V AC 240V AC, at 50 Hz 60 Hz |
Power Switch |
Master power control switch |
Power Cable |
One 14' 9" (4.5 m) power cable is included. |
External Control |
The RS-232 connector is configured to accept control codes from your computer or a room control system. |
Power Consumption |
470 W to 504 W maximum. 5 W (estimated) in Standby mode |
Remote Control |
Provides an alternate method of controlling the Unifi 45 projector settings. |
Theft Protection |
The Unifi 45 projector system features a safety tether on the projector support, optional security screws on the projector plate, an optional padlocked ring to safeguard the adjustment knob, and optional security screws on the projector mount. The projector won?t function when it?s removed from the system because the projector is designed to operate only when it?s attached to the boom. |
Total Size |
18 1/2" W x 15 1/2" H x 39 1/2" D
(47.0 cm x 39.4 cm x 100.3 cm) |
Extended Control Panel |
11" W x 7 5/8" H x 2 3/8" D
(27.9 cm x 19.4 cm x 6 cm) |
Remote Control |
1 3/4" W x 1 1/4" H x 4 1/4" D
(4.4 cm x 3.2 cm x 10.8 cm) |
Weight |
32 lb. (14.5 kg) |
Shipping Size |
Accessory Box:53 1/8" W x 14 3/4" H x 14 1/8" D, (134.9 cm x 37.5 cm x 35.9 cm) |
Projector Box |
17 1/2" W x 14 1/2" H x 10 3/4" D, (44.5 cm x 36.8 cm x 27.3 cm) |
Shipping Weight |
51 lb. 8 oz. (23.4 kg) |
Extended Control Panel (ECP) |
Input/Output Connections |
HD DB15F connector - RGB video from computer
HD DB15F connector - RGB video to projector
DB9F - serial (RS-232) computer or room control connection
DB25M - provides the following inputs to the projector:
- 4-pin mini-DIN connector - S-video input
- One pair of audio jacks (RCA, stereo) reserved for S-video
- Composite video connector - RCA-style video input
- One pair of audio jacks (RCA, stereo) reserved for composite video
- 3.5 mm stereo jack - audio input |
Power Button |
Powers the extended control panel |
Input Selection Button |
Provides control for the following input types: S-video and associated audio (RCA jacks), composite video and associated audio (RCA jacks) and Computer 2 VGA input |
Storage and Operation |
Storage |
122°F (50?C) maximum storage temperature
-40°F (-40°C) minimum storage temperature |
Operation |
From 0' to 6000' (0 m to 1829 m) 41°F to 95°F (5°C to 35°C)
From 6000' to 9800' (1829 m to 2987 m) 41°F to 86°F (5°C to 30°C) |
Notebook Software 10 Computer Requirements |
Windows Computers |
Pentium? II 450 MHz processor
256 MB of RAM (512 MB recommended)
180 MB of free hard disk space for minimum installation (840 MB for full installation with Gallery collections)
Windows 2000, Windows XP or Windows Vista? operating system
Internet Explorer? internet browser 6.0 or later
Adobe? Flash? player version 8
Requirements for SMART Video Player
Pentium II 450 MHz processor (700 MHz or faster recommended)
Microsoft? DirectX? technology 8.1 or later |
Mac Computers |
700 MHz processor (1 GHz or faster recommended) PowerPC? G3, G4 or G5 processors and Intel? processors (universal binary)
256 MB of RAM (512 MB recommended)
85 MB of free hard disk space for minimum installation (825 MB for full installation with Gallery collections)
Mac OS X version 10.4.x operating system software
Safari application program version 1.3.2 or later |
SMART Board Software 9.7 Computer Requirements |
Linux Computers |
Pentium II 450 MHz processor
128 MB of RAM (256 MB recommended)
225 MB of free hard disk space for minimum installation (800 MB for full installation with Gallery collections)
Linux kernel version 2.6 or later
X Window System? version 11 release 6 (X11R6) or later (must support XRender, Xinerama?, XFixes, Xau and Xdmcp)
glibc 2.3.3 (gcc 3.4.2)
libstdc++6
GNOME? 2.8.0+ or KDE? 3.3+ libraries (recommended)
SUSE? 10, Red Hat? Enterprise Linux 4 WS, Debian? 3.1 (Sarge), Ubuntu? 6.06 LTS or Fedora? Core 3+ |
