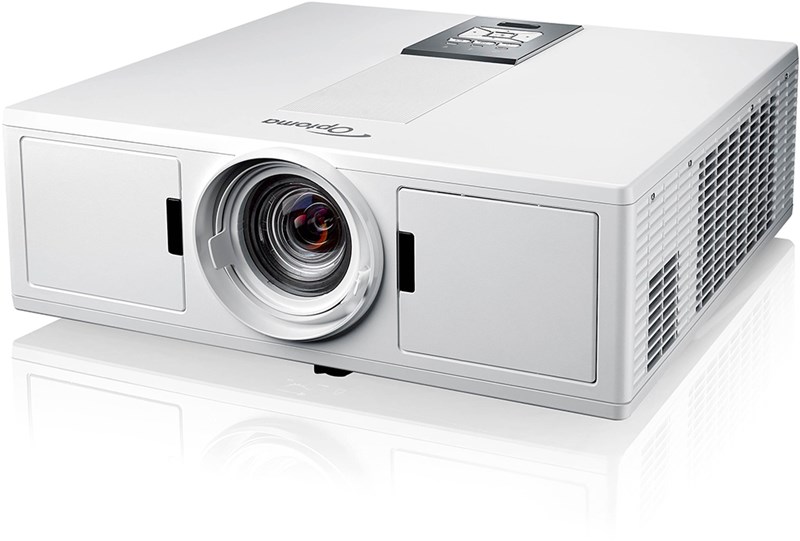

Model: ZU500T-W Specifications |
Description |
Professional Installation WUXGA Laser Projector |
Color |
White |
Technical Specifications |
360 Operation |
Yes |
Aspect Ratio |
16:10 native, 16:9 and 4:3 compatible |
Audio |
2 x 10W speakers (stereo) |
Brightness |
5,000 ANSI Lumens |
Compatible Aspect Ratio |
16:10 (native), 16:9, 4:3, Auto, 16:10 Native, 16:9 & 4:3 compatible |
Connections |
2x HDMI, VGA, HDBaseT, mic in, audio in, VGA out, audio out, 3D sync, 12V trigger, RS-232C, wired remote, USB type A, mini USB, IR receiver, RJ45 |
Contrast Ratio |
300,000:1 (ExtremeBlack enabled) 1,800:1 full on/full Off |
Display Technology |
Single DMD, 0.67 WUXGA DMD, DC3 DLP™ Technology by Texas Instruments |
Displayable Colors |
1.07 Billion |
Keystone Correction |
±30° Vertical and Horizontal |
Light Source Type |
Laser Phosphor |
Light Source Life |
Up to 20,000 hrs |
Lens Shift |
Horizontal ±10%, Vertical ±20% |
Maximum Resolution |
WUXGA (1920 x 1200) |
Native Resolution |
WUXGA (1920 x 1200) |
Noise Level |
28dB (Eco) |
Operating Temperature |
Operating temperature 0 ft°10,000 ft at 5-40°C (41-104°F) |
Portrait Mode |
Yes |
Power Consumption |
380W ±15% max (Bright), 260W ±15% max (ECO) |
Power Supply |
AC input 110– 240V, 50–60 Hz |
Projection Distance |
4 ft (1.24m) – 27.1 ft (8.27m) |
Projection Lens |
1.6x zoom, f=2.3-3.01mm; f=17.63-31.36mm |
Projection Method |
Front, rear, ceiling mount, tabletop, 360° and portrait mode operation capable |
Projection Screen Size |
30”- 300” |
Remote Control |
IR and wired remote |
Throw Ratio |
1.2 – 1.92 |
Uniformity |
85% |
Zoom Type |
1.6x optical, 0.8 – 2.0x digital |
Compatibility Specifications |
3D Compatibilty |
Supports all HDMI 1.4a mandatory 3D formats and up converts frame rate from 60Hz to 120Hz or 24Hz to 144Hz. Required 3D glasses are sold separately. |
Computer Compatibilty |
UXGA, SXGA, XGA, SVGA, VGA, WXGA, WUXGA, Mac |
Horizontal Scan Rate |
15.375 – 91.146 KHz |
Vertical Scan Rate |
24 – 85Hz (120Hz for 3D) |
Video Compatiblity |
SDTV, HDTV |
Physical Specifications |
Dimensions (W x H x D) |
15.2” x 15.9” x 6.2” (405mm x 387mm x 159mm with elevators) |
Security |
Kensington™ lock port |
Weight |
23.6 lbs |
Other |
Optional Accessories |
Universal ceiling mount, HDCast Pro, HDBaseT transmitter, 3D glasses |
Standard Accessories |
AC power cord, VGA cable, remote control, batteries, multilingual CD-ROM user’s manual, basic user manual, warranty card, USB to Micro USB cable |
Warranty Info |
3 years or 20,000 hour light source warranty (whichever comes first), 3-year Optoma Express advance exchange warranty on the projector |
