Model: 24-328-085 Specifications |
Description |

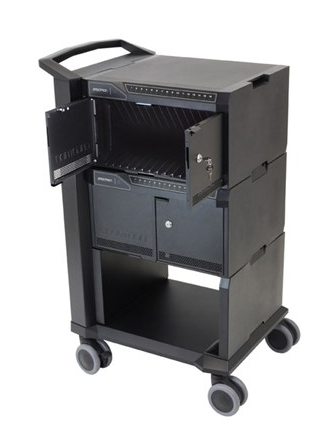

Tablet Management Cart |
Modules |
2 |
Device capacity |
32 |
Individual Status Indicators |
Yes (black) |
Tablet slot size |
7.9"H x 11.3"D x 0.85"W (20 x 28.8 x 2.2 cm). Tablet, power cord, and any cover or case must fit within these dimensions |
Weight Capacity |
Individual tablets up to 2.2 lbs (1 kg); top surface holds up to 25 lbs (11.4 kg) |
Screen |
≤ 10"† |
Certification |
- UL 60950-1 Information Technology Equipment – Safety, CAN/CSA C22.2 No. 60950;
- UL 1667 Tall Institutional Carts for use with Audio-, Video-, and Television-Type Equipment
- IEC 60950-1 worldwide safety standard
- For EMC: FCC part 15 Class A, ICES-003 Class A, AS/NZS CISPR22 Class A, EN55022 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, EN55024
- Complies with USB 2.0 standard
- Acoustic testing indicates very quiet operation at 41.4 dBA
|
Compatible Devices |
iPad mini
iPad (4th generation)
iPad (3rd generation)
iPad 2 iPad
iPod touch (5th generation)
iPod touch (4th generation)
iPod touch (3rd generation)
iPhone 4S |
Tablet Cases |
The following iPad 2/iPad (3rd generation)/iPad (4th generation) cases are tested and confirmed to work with the Tablet Management Module: Apple iPad Smart Case, Belkin Protective Case with Stand, Belkin Tri-Fold Folio, Belkin Snap Shield, Brenthaven Bionic, Casecrown Trifold Case, Casecrown Omni, Griffin Intellicase, Gumdrop Drop Tech, Hard Candy Street Skin, Logiix Roadster II, Otterbox Defender Series (without separate top cover), Otterbox Reflex Series, Speck FitFolio, STM Skinny 3, STM Grip, Targus SafePort Rugged, Targus SafePort Rugged Max Pro, Targus Slim Case, Trident Aegis, Trident Kraken AMS. Other cases may fit if smaller than tablet slot size: 7.9"H x 11.3"D x 0.85"W (20 x 28.8 x 2.2 cm) |
Charging Capability |
Provides full 2.1A charging capability to each device |
Syncing Capability |
Syncs tablets using USB 2.0. External USB 2.0-Standard B receptacle provided to plug in laptop |
Compatible with |
Apple 30-pin and Lightning connectors, and with the Ergotron 30-pin to USB Cable Kit (pt # 97-766) |
Cables |
Not included |
Casters |
Four 4" (100 mm) smooth gliding / 2 locking casters |
Auxiliary electrical outlet |
max current = 3A at 100-120V; max current = 1.5 at 230V |
Power cord |
12.5' (3.8 m) long |
Product Dimensions |
23"W x 18.4"D x 39.3"H (58.4 x 46.7 x 100 cm) |
Product Weight (unloaded) |
99 lbs (44.9 kg) |
Shipping Dimensions |
46.1" x 29.9" x 22.8" (117 x 76 x 58 cm) |
Shipping Weight |
126.5 lbs (57.4 kg) |
Warranty |
Five (5) years; two (2) years for power module; one (1) year for other electrical components |
