| Model: ZH500T-B Specifications |
| Description |

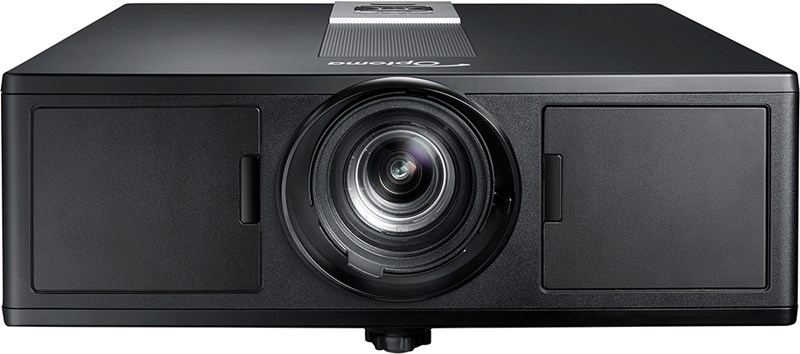

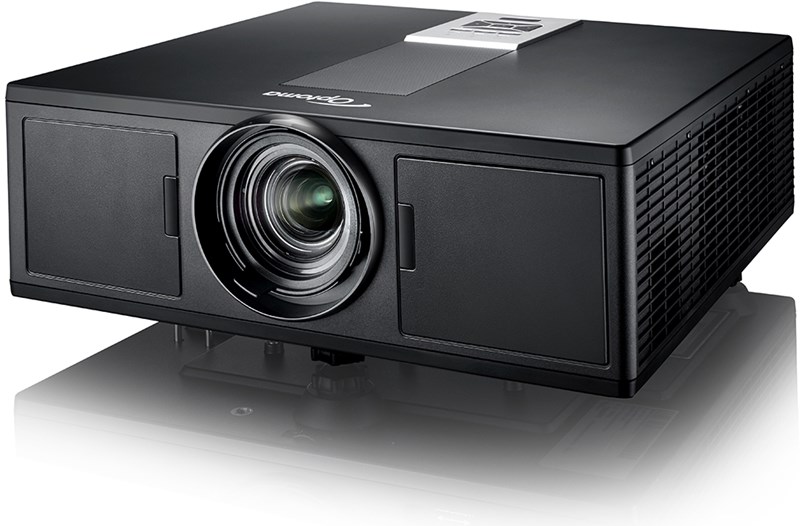

Professional Installation 1080p Laser Projector |
| Color |
Black |
| Technical Specifications |
| 360 Operation |
Yes |
| Aspect Ratio |
16:9 (native), 4:3 (compatible) |
| Audio |
2 x 10W speakers (stereo) |
| Brightness |
5,000 ANSI Lumens |
| Compatible Aspect Ratio |
16:9 (native) and 4:3 (compatible) |

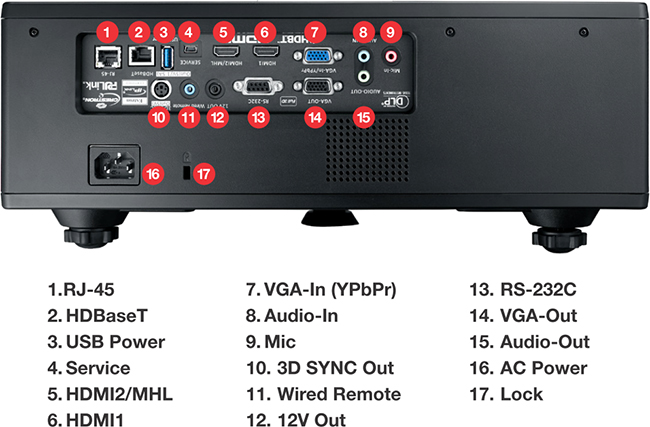

| Connections |
2x HDMI, VGA, HDBaseT, mic in, audio in, VGA out, audio out, 3D sync, 12V trigger, RS-232C, wired remote, USB type A, mini USB, IR receiver, RJ45 |
| Contrast Ratio |
300,000:1 (ExtremeBlack enabled) 1,800:1 full on/full Off |
| Display Technology |
Single DMD, 0.65” 1080P DMD, DC3 DLP® Technology by Texas Instruments™ |
| Displayable Colors |
1.07 Billion |
| Keystone Correction |
±30° Vertical and Horizontal |
| Light Source Type |
Laser Phosphor |
| Light Source Life |
Up to 20,000 hours |
| Lens Shift |
Horizontal: ±10% Vertical: ±25% |
| Maximum Resolution |
WUXGA (1920×1200) |
| Native Resolution |
1080p (1920 x 1080) |
| Noise Level |
28dB (Eco) |
| Operating Temperature |
Operating temperature at sea level up to 10,000 feet = 104° F (max). Must manually switch to high altitude mode from 5,000 feet and above to maintain optimal functionality |
| Portrait Mode |
Yes |
| Power Consumption |
380W ±15% max (Bright), 260W ±15% max (ECO) |
| Power Supply |
AC input 110– 240V, 50–60 Hz |
| Projection Distance |
4.2 ft/1.28m – 27.8 ft /8.5m |
| Projection Lens |
F/2.3~3.01; 17.63-31.36mm |
| Projection Method |
Front, rear, ceiling count, tabletop |
| Projection Screen Size |
30”- 300” |
| Remote Control |
IR and wired remote |
| Throw Ratio |
1.2 – 1.92 |
| Uniformity |
85% |
| Zoom Type |
1.6x optical (manual) |
| Compatibility Specifications |
| Computer Compatibilty |
UXGA, SXGA, XGA, SVGA, VGA, WXGA, WUXGA, Mac |
| Horizontal Scan Rate |
15.375 – 91.146 KHz |
| Vertical Scan Rate |
24 – 85Hz (120Hz for 3D) |
| Video Compatiblity |
SDTV / HDTV |
| Physical Specifications |
| Dimensions (W x H x D) |
15.2” x 15.9” x 6.2” (405mm x 387mm x 159mm with elevators) |
| Security |
Kensington™ lock port |
| Weight |
23.31 lbs |
| Other |
| Optional Accessories |
Universal ceiling mount, HDCast Pro, HDBaseT transmitter, 3D glasses |
| Standard Accessories |
AC power cord, VGA cable, remote control, batteries, multilingual CD-ROM user’s manual, basic user manual, warranty card, USB to Micro USB cable |
| Warranty Info |
3-year or 20,000 hour light source warranty (whichever comes first), 3-year Optoma Express advance exchange warranty on the projector |
