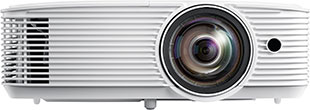

| Model: X318ST Specifications |
| Description |
XGA Short Throw Projector |
| Aspect Ratio |
16:9 (native) 4:3 and auto compatible |
| Audio |
10W speaker |
| Brightness |
3,300 lumens |
| Color Wheel |
RYGCWB |
| Connections |
1x HDMI, 1x HDMI(MHL), 2x VGA, 1 x VGA out, 1x composite, 1x USB, 1x audio in, 1x audio out, 1x Mic in, 1x RS232, 1x RJ45 |
| Contrast Ratio |
20,000:1 |
| Display Technology |
Texas Instruments 0.55″ XGA DMD |
| Displayable Colors |
1.07 Billion |
| Geometry |
Vertical keystone |
| Image Size |
31.9" – 303.9" |
| Inputs |
1x HDMI, 1x HDMI(MHL), 2x VGA, 1x composite, 1x USB, 1x audio in, 1x Mic in |
| Keystone Correction |
±20° Vertical |
| Light Source Life |
Up to 10,000/10,000/6000 (Dynamic/Eco/Bright) |
| Light Source Type |
203W Lamp |
| Maximum Resolution |
UXGA (1600 x 1200) |
| Native Resolution |
XGA (1024 x 768) |
| Noise Level |
28dB (Eco) |
| Offset |
115% ±5% |
| Operating Temperature |
41–104°F (5–40°C), 85% max humidity |
| Outputs |
1x VGA out, 1x audio out |
| Power Consumption |
243W typical (Bright), 267W max (Bright), 237W typical (Eco), 261W max (Eco) |
| Power Supply |
AC input 100–240V, 50–60Hz, auto-switching |
| Projection Distance |
1.31′ – 11.15′ |
| Projection Lens |
F= 2.7, f=7.15mm |
| Projection Method |
Front, rear, ceiling mount, table top |
| Remote Control |
Full size remote |
| Throw Ratio |
0.62:1 |
| Zoom Type |
0.8 – 2.0x digital, Fixed optical |
| Compatibility specifications |
| 3D Compatibilty |
Supports all HDMI 1.4a mandatory 3D formats (Frame pack, side-by-side, top-bottom) and up converts frame rate from 60Hz to 120Hz or 24Hz to 144Hz. 3D glasses are needed and are sold separately. |
| Computer Compatibilty |
VGA, SVGA, HDTV(720P), WXGA, WXGA+, SXGA, SXGA+, UXGA, HDTV(1080p), WUXGA |
| Horizontal Scan Rate |
15.375-91.146 KHz |
| Vertical Scan Rate |
50-85 Hz (120Hz for 3D feature projector) |
| Video Compatiblity |
PAL, SECAM, 576i/p, NTSC, 480i/p, HDTV 720p/1080i/1080p |
| Physical specifications |
| Dimensions |
12.44″ x 4.27″ x 9.56″ |
| Security |
Kensington® lock port |
| Weight |
6.7 lbs. |
| Other |
| Accessories |
Remote: BR-5053C, Lamp: BL-FU200D, Mount: OWM3000ST |
| UPC |
796435442729 |
| Warranty Info |
3-year limited parts and labor, 1- year on lamp |
