| Model: HD27HDR Specifications |
| Description |
1080p Home Entertainment Projection |
| Aspect Ratio |
16:9 |
| Audio |
10 Watt Speaker |
| Brightness |
3,400 ANSI lumens |
| Color Wheel |
6 segment RYGCWB |
| Compatible Aspect Ratio |
16:9 (native), 4:3, 16:10 and LBX compatible |
| Connections |

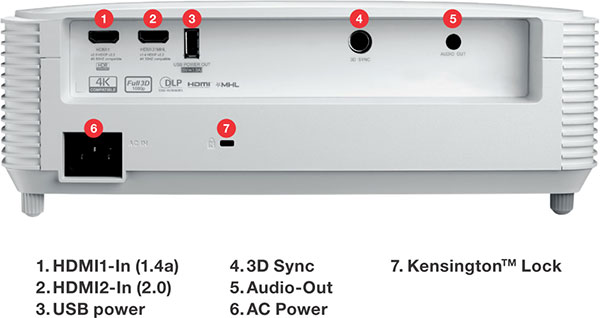

1 x HDMI (2.0 with HDCP 2.2), 1 x HDMI (1.4a), audio-out, 3D Sync port, USB power |
| Contrast Ratio |
50,000:1 |
| Display Technology |
Texas Instruments 0.65" 1080p DMD |
| Displayable Colors |
1.07 Billion |
| Image Size |
28" – 305.3" |
| Keystone Correction |
± 40° Vertical |
| Light Source Life |
15,000/10,000/6,000 (Dynamic/ECO/Bright) |
| Maximum Resolution |
4K UHD (3840 x 2160) |
| Native Resolution |
1080p (1920 x 1080) |
| Noise Level |
26dB |
| Offset |
116% ± 5% |
| Operating Temperature |
41-104°F (5-40°C), 85% max humidity |
| Power Consumption |
236W typical, 260W max (Bright mode), 216W typical, 216W max (Eco mode) |
| Power Supply |
AC input 100-240V, 50-60 Hz, auto-switching |
| Projection Distance |
3.2’ – 35.91′ (without zoom) |
| Projection Lens |
F=2.5 ~ 2.67, f=21.86 ~ 24mm (manual focus) |
| Projection Method |
Front, rear, ceiling count, tabletop |
| Remote Control |
Full size remote |
| Throw Ratio |
1.48 – 1.62 |
| Uniformity |
80% |
| Zoom Type |
1.1x optical (manual) |
| Compatibility specifications |
| 3D Compatibilty |
Side-by-side: 1080i50 / 60, 720p50 / 60, Frame-pack: WUXGA24, 720p50 / 60, Over-under: WUXGA24, 720p50 / 60 |
| Computer Compatibilty |
FHD, HD, WXGA, UXGA, SXGA, XGA, SVGA, VGA, Mac |
| Horizontal Scan Rate |
25 – 85Hz (120Hz for 3D) |
| Vertical Scan Rate |
24 – 120Hz |
| Video Compatiblity |
PAL (B, D, G, H, I, M, N, 576i/p), NTSC (M, 4.43/3.58 MHz, 480i/p), SECAM (B, D, G, K, K1, L) HD (1080i, 720p) |
| Physical specifications |
| Dimensions |
12.44" x 4.27" x 9.7" |
| Security |
Security bar, Kensington lock, password protection |
| Weight |
6.2 lbs. |
| Other |
| Accessories |
Lamp: BL-FU200E, Remote: BR-3003B, DLP® Link™ 3D glasses: ZD302, Ceiling mount: OCM818B-RU, Ceiling mount: BM-5001U, Ceiling mount (with extensional pole): OCM815B |
| Optional Accessories |
Universal ceiling mount, DLP®Link™ 3D glasses, lamp, remote |
| UPC |
796435 81 314 7 |
| Warranty Info |
1 year limited warranty, 90 days on lamp |
