Model: INF8633e Specifications |
Description |

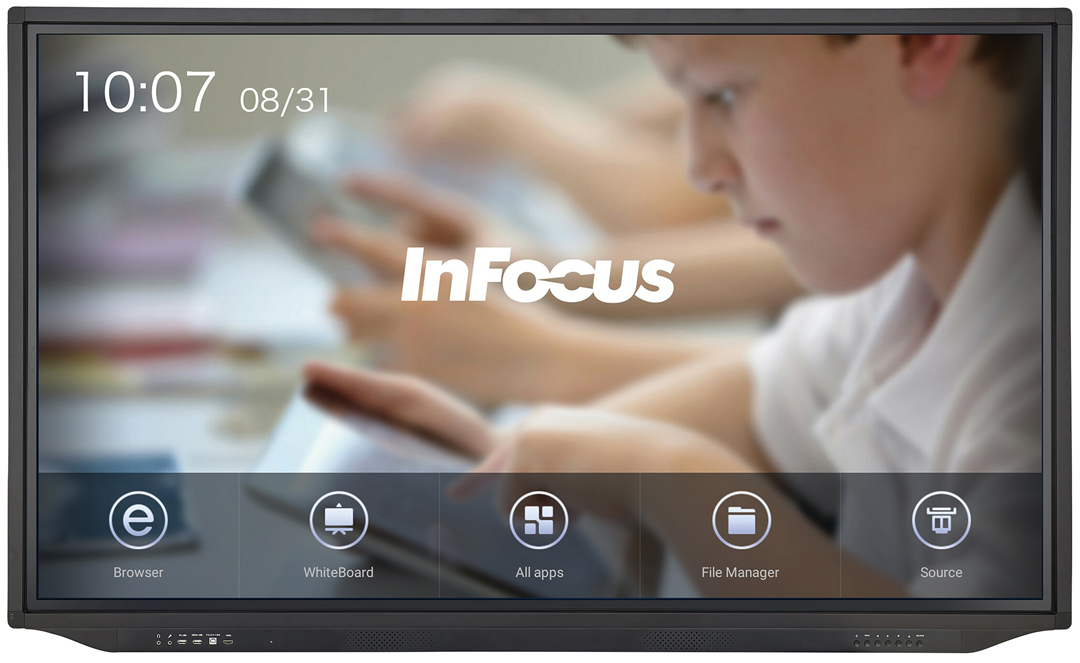

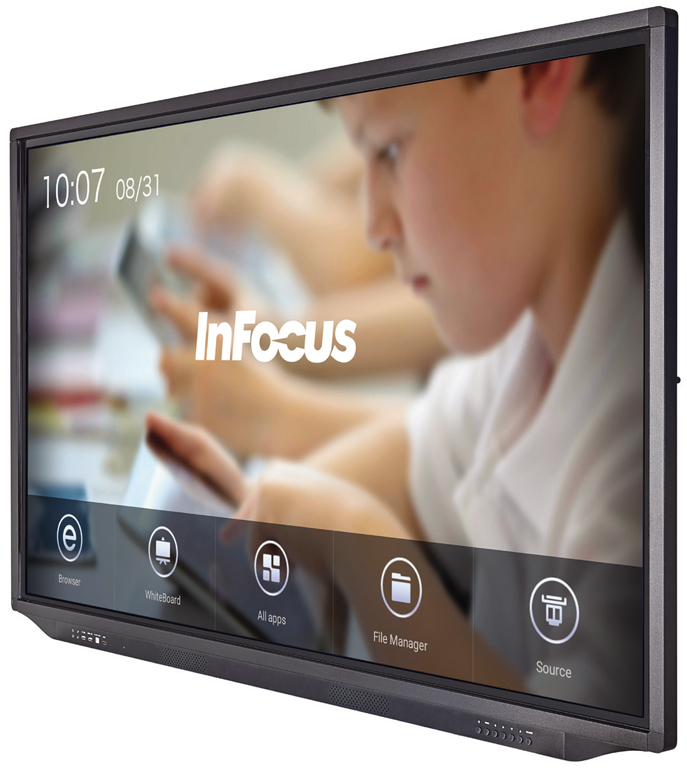

JTouch Plus 86-inch 4K Anti-Glare Display with Android for Education |
Display |
Diagonal Size |
86" |
Resolution — Native |
4K UHD (3840 x 2160) |
Display Technology |
Direct-LED backlight |
Touch Screen Features |
Multi-touch, Anti-glare, Anti-Fingerprint |
Glass Strength |
4mm thick, heat treated |
Scratch Resistance |
7 Mohs |
Contrast Ratio |
1,200:1 |
Display Brightness |
450 cd/m2 |
Refresh Rate |
120 Hz |
Response Time |
8.0 ms |
Pixel Pitch |
0.429 mm |
Viewing Angle |
176° |
Speakers |
Stereo 10W x 2 |
Display Connectors — Inputs |
RS232, Component video, Composite video, HDMI x 5, RJ-45 (Ethernet), VGA, USB 3.0 x2, Media USB (Android), PC Audio In (stereo, VGA Audio source), 1/8" Microphone (Mono linked to OPS), USB 2.0 x2, OPS PC USB x2, RCA L/R audio |
Display Connectors — Outputs |
RS232, 3.5mm PC audio, HDMI, SPDIF, 3.5mm Headphone, RCA L/R audio, USB-B x5 for Touchscreen Control |
Power Standard |
AC 100 to 240V, 50/60 |
PC |
PC Hardware |
OPS Bay |
System |
Included Accessories |
Power cord, Remote, Stylus, HDMI Cable, USB cable, Quick Start Guide, USB WiFi Adapter |

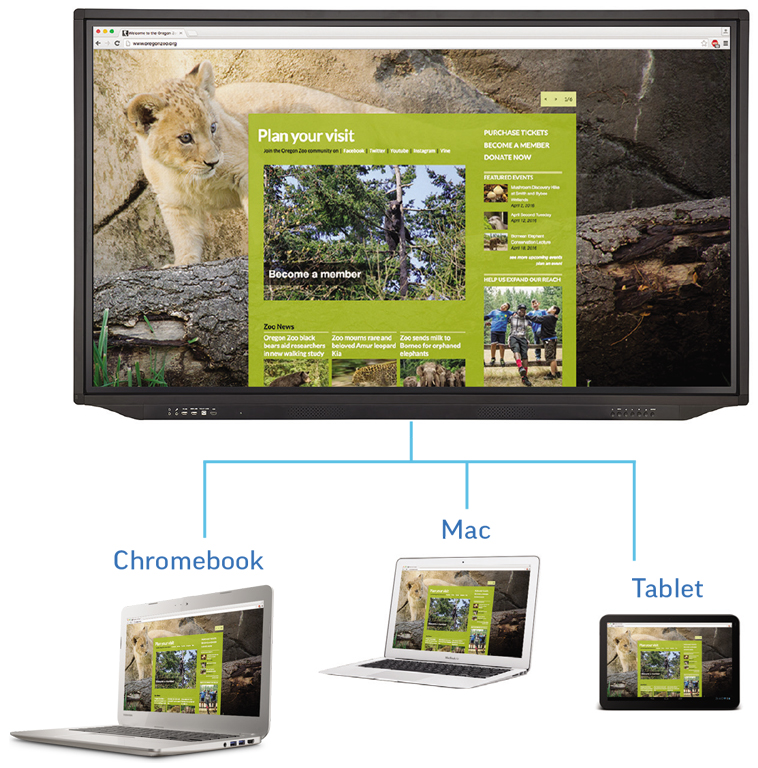

Wireless Collaboration |
Casting embedded |
Audible Noise |
< 40 dBA at 77°F / 25°C |
Operating Conditions |
32 to 104°F at 0 to 10000 ft / 0 to 40°C at 0 to 3048 m |
Mounting Pattern |
Vesa 400 x 700mm M8 screws |
Product Warranty |
2 years |
Product Dimensions |
47.3 x 78.3 x 4.6in / 1201 x 1990 x 116mm |
Product Weight |
184.5lbs / 83.75kg |
Shipping Dimensions |
58.7 x 86.6 x 14.2in / 1490 x 2200 x 360 mm |
Shipping Weight |
242.5lbs / 110kg |
