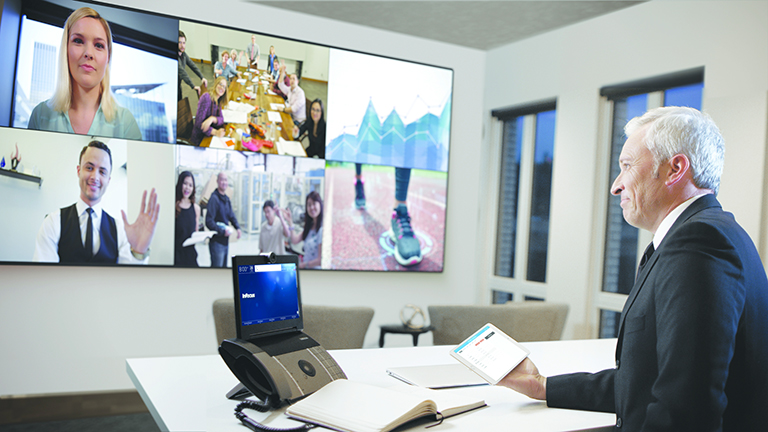

Model: INCONXEX4-KIT Specifications |
Description |
ConX Exec MCU |
Video Codec Native |
H.264 AVC, H.263, H.263++, DSV |
Audio Codec Native |
G.711, G.722, G.729 |
Signaling Protocols Native |
SIP, H.323, Skype for Business |
Encryption Native |
TLS, SRTP, HTTPS |
Live Resolutions (Transmitted) Native |
1080p30, 720p30 |
Via InFocus Connect |
720p30, 4CIF, 4SIF, CIF, SIF, QCIF |
Live Resolutions (Received) Native |
1080p30, 720p30, 480p30 |
Via Internet Data Stream |
720p30, 4CIF, 4SIF, CIF, SIF, QCIF |
Data Rate (Transmitted) Minimum |
1Mbps at 720p 30fps, up to 4Mbps at 1080p 30fps |
Data Rate (Received) Minimum |
1Mbps at 720p 30fps, up to 4Mbps at 1080p 30fps |
Maximum |
24Mbps in multiple video streams ingress and egress |
Content Sharing |
1Mb ingress per data stream |
WAN |
Broadband IP WAN link (QoS not required) |
Cloud Service |
ConX Cloud |
Mondopad |
Mondopad screensharing via ConX Cast |
MCU Video Output |
Output Interface |
8x Mini DisplayPort (DVI adaptors included) |
Display Resolution |
1080p60 |
Video Wall Configuration |
2x2 |
MCU Inputs |
Video & Data |
8x HDMI 1.4a, upto 1080p30 resolution |
Audio |
8x via HDMI |
Included Peripherals |
Meeting Control Tablet |
11" Android Tablet (SM-T580NZKAXAR) to access web based ConX Control Panel application |
Mic & Speakers |
Thunder Speakerphone (INA-TH150) |
PTZ Camera |
Auto focus 1080p30 PTZ camera with IR remote (INA-PTZ-3) |
Apple TV |
Apple TV for full AirPlay casting support (requires one HDMI input channel) |
Microsoft Miracast Adapter |
Miracast Adapter for Miracast for Windows 10 and Android Device Screen Sharing (requires one HDMI input channel) |
Other |
Control |
Web based application |
API |
TCP/IP for 3rd party control systems |
Network Interface |
2x Gigabit Ethernet: Supports 10BASE-T, 1000BASE-TX and 1000BASE-T, RJ45 output |
USB |
4 x USB 3.0 |
Operating System |
Windows Server 2012 R2 |
Recording |
MP4 video saved to hard drive or network drive. |
Power Supply |
1x1000, 100-240V, 3A, 50-60A |
Chassis |
Dimensions |
4RU, 19 x 21.6 x 7 in. / 483 x 550 x 176 mm |
Weight |
40 lbs / 18.1 kg |
Shipping Weight |
60 lbs / 27.2 kg |
Operating Range |
Operating Temperature Range |
10 to 35˚ C (50 to 95˚ F) |
Non-Operating Temperature Range |
-40 to 65˚ C (-40 to 149˚ F) |
Operating Humidity Range |
20% to 80% (non-condensing) |
Non-Operating Humidity Range |
5% to 95% (non-condensing) |
Regulatory |
EMI/EMC |
FCC, VCCI, ICES |
Safety |
USA: TUV certified; Canada: TUV certified; Europe: TUV certified; China: CCC Certification |
Environmental |
RoHS compliant |
Chassis |
Display Size |
48.5” Diagonal |
Module Size |
43 x 24.5 x 3.3 in. / 1092 x 622 x 83.8 mm |
Bezel Size |
0.35” Even Bezel |
Display Info |
Display Type |
LCD with LED Backlight |
Display Resolution |
1920 x 1080 FHD |
Contrast |
1000:1 |
Color |
10 Bit, 1.07B Colors |
Viewing angles |
178 Degrees Uniform |
Orientation |
Portrait or Landscape |
Power Supply |
100-240V, 3A, 50-60A |
Guaranteed Operating Hours |
16 Hours per Day |
Lifetime (Typ.) |
30,000 Hours |
Interface |
Video Inputs |
VGA, DVI, HDMI 1.4 |
Controls |
IR remote, LAN |
Environmental |
Power Consumption |
150W per Display |
Weight |
49 lbs / 22.2 kg |
Operating Range |
Operating Temperature Range |
10 to 35˚ C (50 to 95˚ F) |
Non-Operating Temperature Range |
-40 to 65˚ C (-40 to 149˚ F) |
Operating Humidity Range |
20% to 80% (non-condensing) |
Non-Operating Humidity Range |
5% to 95% (non-condensing) |
Regulatory |
EMI/EMC |
FCC, VCCI, ICES |
Safety |
USA: TUV certified; Canada: TUV certified; Europe: TUV certified; China: CCC Certification |
Environmental |
RoHS compliant |
Wall Mount |
Mount |
Push In - Pop Out™ Wall Mount Bracket |
Panel Size Range |
37 – 60+ in. |
Weight Capacity |
200 lbs / 91 kg |
Max Mounting Pattern |
800 x 400mm |
VESA Mounting Pattern |
75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm, 800x200mm, 800x400mm |
Depth from Wall |
3.07 in. / 78 mm VW4600, 3.39 in. / 86 mm VW4600G2 |
Pull Out Max Extension |
10.69 in. / 272 mm |
Alignment Adjustment |
Vertical, Horizontal, Plumb Adjustments |
Mounting Surface |
Wood Stud, Concrete, Cinder Block or Metal Stud (Accessory Required HT4) |
Construction |
High-Grade Cold Rolled Steel |
Product Finish |
Scratch Resistant Epoxy Powder Coat |
Product Weight |
16 lbs / 7.3 kg |
Package Dimensions |
36 x 12 x 5 in. / 914 x 305 x 127 mm |
Color |
Black |
Model Number |
VW4600 VW4600G2 |
