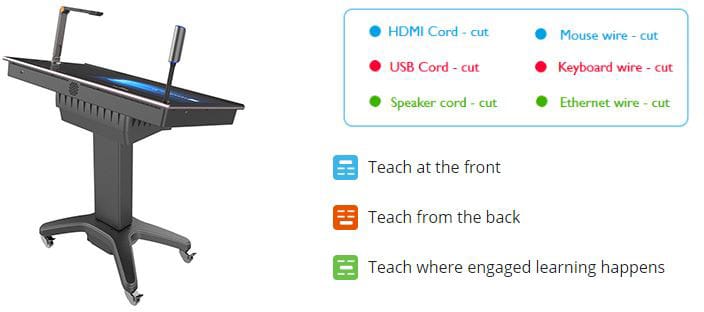

| Model: Pilot 3 Plus Specifications |
| Description |
Pilot 3 Plus |
| Pilot embedded PC |
| Display size, diagonal (Inches) |
21" LCD with 10-point multitouch |
| Display resolution |
HD (1920 x 1080) resolution |
| Processor |
Intel Core® i7 |
| Memory |
16GB |
| Hard Drive |
512GB SSD |
| Display Adapter |
Intel® HD Graphics 630 |
| Network |
1x RJ45, 10/100/1000 Mbit |
| Wireless network connectivity |
WiFi module. Supports 801.11 B/G/N |
| Bluetooth |
4.0 |
| Operating System |
Microsoft Windows 10 64bit (license not included) |
| Power Supply |
AC100-240V, 50/60Hz |
| Certifications |
FCC, CE, RoHS |
| Pilot Connectivity |
| HDMI in |
2x |
| HDMI out |
1x |
| Apple® Lightning connector |
1x IOS compatibility (Does not support device charging) |
| USB 3.0 Type |
2x -A |
| Mic in |
1 x 3.5mm |
| Aux/Headphone/Line out |
1 x 3.5mm |
| Speakers |
2x3W |
| Wireless display connectivity |
| HoverCast Wireless HDMI transmitter |
1x Built-in (60Ghz) |
| HoverCast Wireless HDMI receiver |
1x Clamps onto CenterStage IFP |
| HoverCast Connectivity |
1x HDMI out, 1x USB Touch, Power in |
| Integrated Solo8 Plus Document Camera |
| Camera Sensor |
13MP BSI CMOS |
| Image resolution |
4224 x 3156 (13MP) |
| Frame rate |
4K @ 30 fps, 1080p @ 60 fps, 720p @ 120 fps |
| Lens |
High precision 5-element lens, f2.0 |
| Zoom |
Total 480x Zoom (6x ASR zoom, 8x Digital, 10x Mechanical) |
| Scan size |
A3, A4, 11 x 17", US Letter and Legal |
| Max camera viewing area |
13" x 21" |
| Built-in Microphone |
Yes, with noise reduction |
| Stage illumination |
4 Ultra Bright LED's |
| Document sizing and positioning Mat |
Included |
| Bundled software |
| Flex 11™ |
Document camera software for lesson recording, video display, snapshots morand e |
| KnoteSter™ |
Desktop annotation, whiteboarding, lesson recording |
| HDMI Viewer™ |
Wired device mirroring and annotation via HDMI or Lightning port |
| Reflector 2™ |
Wireless device mirroring |
| Mechanical Specifications |
| Dimensions (L x W x H) |
36 x 20 x 37 inches |
| Weight |
76 lbs. |
| Shipping weight |
146 lbs. |
| Control panel |
Power On/Off, Input source selection, Podium height adjustment up/down |
| Height, adjustable range |
20" minimum – 40" Maximum |
| Pedestal color |
Black |
