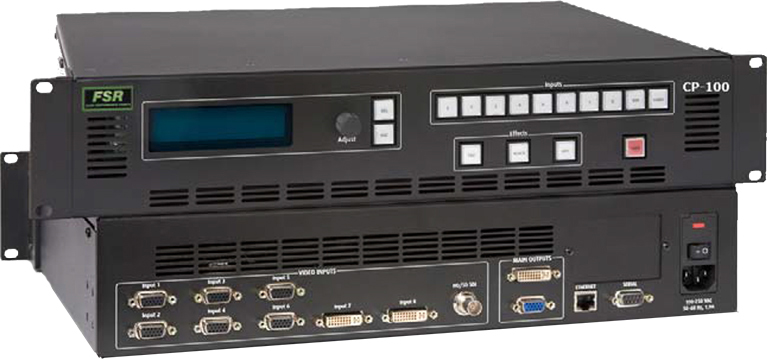

FSR CP-100 Compass Plus 8x1 Seamless Switcher with Keying
- Eliminating the need to create custom output formats
- Provides an integrated test pattern generator
- Stores and recalls up to three full screen logos
Designed to provide true seamless switching between
various input sources
A high-quality presentation switcher
The FSR CP-100 Compass Plus is a high-quality presentation switcher designed to provide true seamless switching between various input sources. High image scaling quality is maintained throughout. The CP-100 offers straightforward and simple operating modes, and is ideal for use in live events, company boardrooms, hotel ballrooms, houses of worship, and in education and training facilities. As the ideal “simple” presentation switcher to learn and operate, the CP-100 provides a full-screen output only, with no PIP capability.
Allows you to capture and store up to three images
The CP-100 accepts analog, DVI, and HD-SDI input sources and converts them to a wide variety of output formats. Output video is provided on analog and DVI connectors simultaneously. The CP-100 also allows you to capture and store up to three images to be used as full-screen logos during the presentation. Any DVI source can be used as a luminance key, providing an easy way for users to create titles and lower-third graphics.
1. Display Section
- Four (4) line, 128x32 VFD Display
- Menu navigation via rotary encoder knob, Select/Escape buttons
2. Inputs Section
Ten buttons select the corresponding input source, or the stored LOGO image, to be placed on program after the TAKE button is pressed.
There are three button states:
- Off: The source is not currently on program
- Blinking: The source has been selected and will be
- placed on program after the TAKE button is pressed
- Yellow: The source is on program.
3.Effects Section
- FRZ: Instantly freezes the current image that is on program.
- BLK: Cuts the program to black
- KEY: The key source will transition to/from program, after the TAKE button is pressed
4.TAKE
Transitions the selected source or KEY at the pre-selected rate.
1. Six Analog Inputs via HD-15 VGA connectors
- Supports YPbPr and RGBHV
- 10-bits/color sampling at maximum 170 MHz
- True pixel mapping (1:1) for signal resolutions up to 1600x1200@60 Hz. Sources with higher pixel rates (1920x1080p@60, 1920x1200@60 and 2048x1080p@60) are also supported
2. Two Digital or Analog Inputs via DVI-I connectors
- 8-bit digital input per DDWG 1.0 with HDCP support
- RGBHV data via analog pins of the DVI-I connector
- The digital source will be processed if valid DVI signals are detected. The Analog source can be selected via the front panel menu
3. Serial Digital Input (HD/SD SDI) via BNC connector (optional)
- SD SDI per SMPTE 259M-C (NTSC/PAL resolution)
- HD SDI per SMPTE 292M (HDTV)
4. Output Connectors
- Program output in digital format on the DVI-I connector and in analog format on the HD-15 connector.
- Progressive resolutions at RGBHV
- HDCP Encryption support for DVI signals
5. Ethernet
- RJ-45 connector for 10/100Base-T Ethernet communications
6. Serial RS-232
- DB-9 connector for communicating with external serial devices
7. AC Power
- Input Power: 100-240 VAC, 47-63 Hz
- 240 watts maximum
- Auto-Ranging
