| Model: V11H701020 Specifications |
| Description |

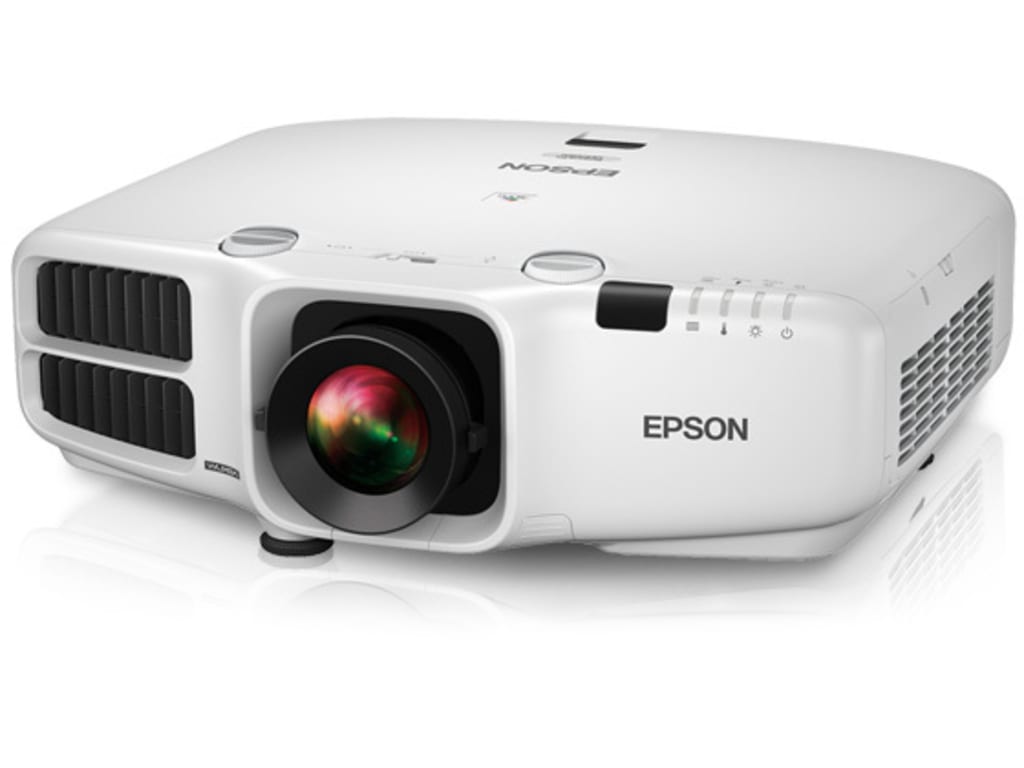

PowerLite Pro G6470WU WUXGA 3LCD Projector with Standard Lens |
| Projector Specifications |
| Projection System |
High-aperture Epson 3-chip, 3LCD technology |
| Projection Method |
Front / rear / ceiling mount |
| Driving Method |
Epson Poly-silicon TFT Active Matrix |
| Pixel Number |
2,304,000 dots (1920 x 1200) x 3 |
| Color Brightness - Color Light Output |
4500 lumens |
| White Brightness - White Light Output |
4500 lumens |
| Aspect Ratio |
Supports 4:3, 16:9, 16:10 |
| Native Resolution |
1920 x 1200 (WUXGA) |
| Resize |
640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050 |
| Lamp Type |
380 W UHE |
| Lamp Life |
Normal mode: Up to 3000 hours
ECO mode: Up to 4000 hours |
| Brightness Uniformity |
90% |
| Pixel Arrangement |
Cross stripe |
| Throw Ratio Range |
(For Standard Lens) 1.26 – 2.76 |
| Size - projected distance |
50" – 300" |
| Keystone Correction |
Horizontal: ±30 degrees
Vertical: ±30 degrees |
| Color Reproduction |
Up to 1 billion colors |
| Projection Lens |
| Type |
(For Standard Lens) Manual focus / zoom |
| F-number |
(For Standard Lens) 1.65 – 2.55 |
| Focal Length |
(For Standard Lens) 21.28 mm – 37.94 mm |
| Zoom Ratio |
(For Standard Lens) Optical zoom 1.0 – 1.8 |
| Lens Shift (For Standard Lens) |
Vertical: ±67 degrees
Horizontal: ±30 degrees |
| Projector Details |
| Display Performance |
NTSC: 480 line
PAL: 576 line
(depends on observation of the multi-burst pattern) |
| Input Signal |
NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
480i / 576i / 480p / 576p / 720p / 1080i / 1080p
Pixel works: video chip
3D Y/C separation, noise reduction motion compensated
Interlace-Progressive conversion (2 – 2, 3 – 2 film detection) |
| Interfaces |
HDMI x 1
DisplayPort x 1
Computer: D-sub 15 pin x 1
Video-1: 5-BNC x 1
Video-2: RCA x 1
Composite video: BNC x 1
S-Video x 1
Audio-in: Mini stereo x 3
Audio-in: RCA (L & R) x 1
Network: RJ-45 x 1, 100 Mbps
USB Type-A x 1, Type-B x 1
Serial: RS-232c
Hardwire Remote jack x 1
Monitor-Out: D-sub 15 pin x 1 |
| Fan Noise |
Normal mode: 39 dB
ECO mode: 31 dB |
| Effective Scanning Frequency Range |
| Pixel Clock, Horizontal,Vertical |
Pixel Clock
13.5 MHz – 162 MHz (up to UXGA 60 Hz)
Horizontal
15 KHz – 92 KHz
Vertical
50 Hz – 85 Hz |
| Power |
| Power Supply Voltage |
100 – 240 V ±10%, 50/60 Hz AC |
| Power Consumption |
Normal mode: 528 W
ECO mode: 421 W
Communication on: 3.3 W standby
Communication off: 0.41 W standby |
| Remote Control |
| Features |
Power, source search selection, computer, video, A/V mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, help, menu, enter, esc and pointer functions |
| Operating Distance |
49 ft |
| Operating Angle |
Right / Left:
Front: ±60 degrees
Rear: ±30 degrees
Upper / Lower:
Front: ±20 degrees
Rear: +10 to -45 degrees |
| General |
| Temperature |
32° to 113° F (0° to 45° C) |
| Weight |
21.5 lb (with standard lens) |
| Security |
Security cable hole
Lens lock
Kensington® lock provision |
| Projector Dimensions |
| Including feet |
With standard lens: 19.88" x 15.94" x 6.73" (W x D x H) |
| Excluding feet and lens |
19.88" x 15.04" x 5.67" (W x D x H) |
