| Model: 1349-7 Specifications |

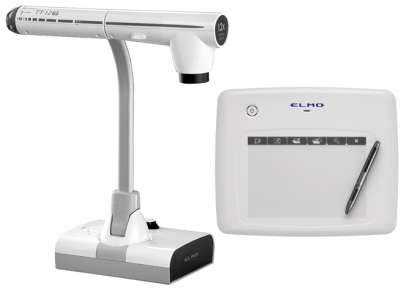

| TT-12iD Document camera |
| Camera |
| Image pick-up device |
1/2.8" CMOS sensor 3,400,000 pixels |
| Total pixels |
2,144 (H) x 1,588 (V) |
| Effective pixels |
1,920 (H) x 1,536 (V) |
| Frame rate |
30 fps |
| Resolution |
Analog RGB: 800 (H) x 800 (V) TV lines or more |
| Optics |
| Zoom |
Powered, 12x optical |
| Lens |
F3.2-3.6, f=4.0 mm- 48.0 mm |
| Shooting area |
1080p: Max. 16 9/16" x 9 3/16" (420 x 233 mm) Min. 1 15/16" x 1 1/16" (48.5 x 27.5 mm), 720p: Max. 16 9/16" x 9 3/16" (420 x 233 mm) Min. 1 15/16" x 1 1/16" (48.5 x 27.5 mm), SXGA: Max. 16 9/16" x 13 1/8" (420 x 334 mm) Min. 1 15/16" x 1 1/2" (48.5 x 38.5 mm), WXGA: Max. 16 9/16" x 10 3/16" (420 x 259 mm) Min. 1 15/16" x 1 3/16" (48.5 x 30.5 mm), XGA: Max. 16 9/16" x 12 5/16" (420 x 313 mm) Min. 1 15/16" x 1 7/16" (48.5 x 36.5 mm) |
| Focus |
Auto / Manual / Zoom Sync |
| Functions |
| White balance |
Auto / One-Push / Manual |
| Image mode |
Text1 / Text2 / Text3 / Graphics1 / Graphics2 |
| Edge enhancement |
Provided (only for graphics mode) |
| Pause |
Provided |
| Still image storage |
Provided |
| Movie storage |
Provided |
| USB image output |
Provided (ELMO original, UVC (USB Video Class)) |
| Digital zoom |
8x |
| Gamma setting |
Provided (only for graphics mode) |
| Graphical OSD (on-screen display) |
Provided |
| Slide show |
Provided (image data) |
| Image save |
SD memory card / SDHC memory card / USB flash drive |
| State presetting |
Up to 3 user settings |
| Annotation |
Provided (CRA-1 use) |
| Brightness control |
Auto (with level adjustment) / Manual |
| Support functions |
Highlight, Mask, Scroll (in digital zoom), Mosaic, Split screen, PinP (Picture-in-Picture), Color filter, Microscope, Image rotation (0º/180º), Positive/negative conversion, Color/B&W selection |
| Interface |
| Input selection |
Main / External |

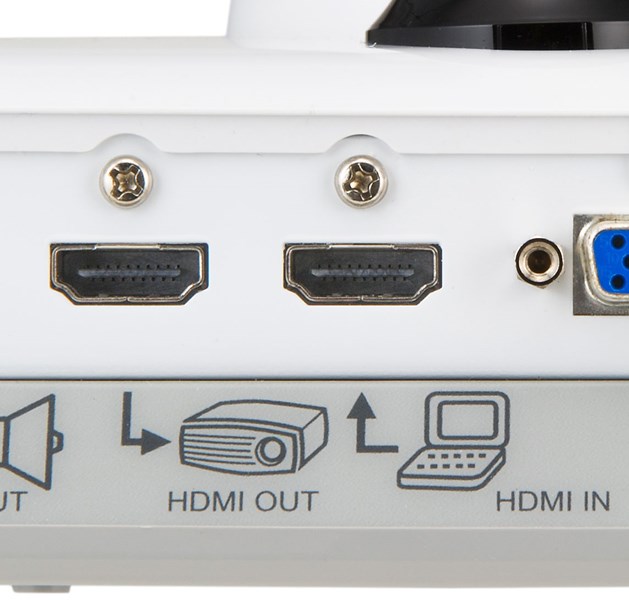

| Output terminals |
RGB output mini D-sub 15-pin connector, female x 1, HDMI output terminal x 1, Line Out terminal 3.5 mm-diameter stereo mini jack x 1 |
| Input terminals |
RGB input mini D-sub 15-pin connector, female x 1, Mic In/Line In terminal (shared), 3.5 mm-diameter stereo mini jack x1, Ext. control terminal, USB device (2.0 compliant) (UVC Compliant) Mini-B receptacle x 1 |
| Analog RGB output |
1080p: 1,920 x 1,080 @ 60 Hz, 720p: 1,280 x 720 @ 60 Hz, SXGA: 1,280 x 1,024 @ 60 Hz, WXGA: 1,280 x 800 @ 60 Hz, XGA: 1,024 x 768 @ 60 Hz |
| HDMI output |
Image output: 1080p/720p, Audio output: PCM 44.1 kHz sampling frequency |
| Video output selection switch |
Provided (NTSC/PAL) |
| Memory interface |
SD memory card slot x 1, USB host (2.0 compliant) Type A receptacle x 1 |
| Lighting |
| Illumination Lamp |
White LED |
| Others |
| Accessories |
AC adapter, power cord, USB Cable, Instruction Manual, Image Mate CD-ROM, Infrared wireless remote control, AAA battery, easy start-up guide, warranty sheet |
| Security slot |
Provided |
| Power source |
12V DC (AC adapter AC 100 - 240V) |
| Power consumption |
16.2 W (AC adapter included) |
| Dimensions (WxDxH) |
14" x 14 11/16" 16 3/16" (355 x 373.5 x 426.5 mm) setup, 7 11/16" x 11 9/16" x 18 7/16" (195 x 294 x 469 mm) folded |
| Weight |
Approx. 7.1 lbs (3.2 kg) (main unit only) |
| CRA-1 Wireless Slate/Tablet |
| Operating temperature |
0 to 40C DEGREES |
| Reading range |
8.0 x 5.0 inches (203.2 x 127.0 mm) |
| Reading resolution |
0.0127 mm |
| Reading accuracy |
0.42 mm |
| Reading speed |
120 rps |
| Pen pressure level |
1,024 levels |
| Wireless band used |
2.4 GHz |
| Communication range |
Approx. 49.2 feet (15 m) (differs depending on usage conditions) |
| Power supply |
Lithium-ion battery |
| Continuous operation time |
Approx. 16 hours (differs depending on usage conditions) |
| Auto power off time |
Approx. 30 minutes |
| Full charging time |
Approx. 4 hours |
| Consumption current |
When using USB: 5 V 500 mA, When using lithium-ion battery: 3.7 V 60 mA |
| Computer model |
IBM compatible computer equipped with a standard USB port and CD-ROM drive (Operation is not guaranteed for all computer environments.) |
| Compatible OS |
Windows® 7 (32-bit) / Vista SP1 (32-bit) / XP SP2 (32-bit) |
| "External dimensions (W x D x H)" |
12 13/32" x 10 1/8" x 29/32" (315 x 257 x 23 mm) |
| Weight |
23.6 oz (670 g) (including Tablet, Pen, Wireless adapter, Dry cell AAA battery, and Lithium-ion battery for tablet) |
