| Model: VE7833 Specifications |
| Description |
15M True 4K HDMI 2.0 Active Optical Cable |
| Certifications |
| Certifications |
Safety and Emission: CE / FCC / RoHS2 / UL CMP-OF |
| Notification |
Bend Radius: 6mm (Min.)
Connector Pull Strength: Max. 10kg (100N)
Compression Load Resistance: Max. 50kg (500N)
Reduced EMI & RFI |
| Jacketed |
| Material |
UL Plenum（CMP-OF) |
| Conductor |
| Construction |
6 x Insulated Copper wire (28 AWG)
4 x Fiber |
| Cable Length |
30M / 98ft |
| Communication |
| Signals |
TMDS / HDCP 2.2 / EDID / CEC |
| Power (Optional) |
Optional power source: Micro USB to USB cable (45cm) 5V, 0.148A |
| Audio |
| Input |
PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio |
| Output |
PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio |
| Cable Type |

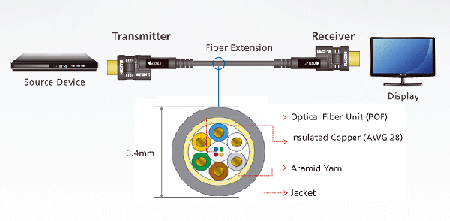

Cable Type: Hybrid optical with fiber and copper wire
HDMI Standards: High Speed HDMI Cable (HDMI 2.0) |
| Video Input |
| Interfaces |
1 x HDMI 19-pin Type-A Male (gold-plated) pluggable (Black)
1 x HDMI Type-D Male (Black) |
| Video Output |
| Interfaces |
1 x HDMI 19-pin Type-A Male (gold-plated) pluggable (Black)
1 x HDMI Type-D Male (Black) |
| Video |
| Max. Data Rate |
18 Gbps (6 Gbps per Channel) |
| Max. Pixel Clock |
600 MHz (Max.) |
| Compliance |
HDMI 2.0 (3D, Deep Color, 4K, HDR)
HDCP 2.2
Color sub-sampling: 4:4:4 / 4:2:2 / 4:2:0
Color Depth: 30 / 36 / 48 bit |
| Max. Resolutions / Distance |
Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) / 15m |
| Power Consumption |
DC5.3V:0.63W:2.15BTU |
| Environmental |
| Operating Temperature |
0°C to 50°C (32℉ to 122℉) |
| Storage Temperature |
-20°C to 70°C (-4℉ to 158℉) |
| Humidity |
0 - 85% RH, Non-Condensing |
| Physical Properties |
| Housing |
Connector Case: ABS (Acrylonitrile Butadiene Styrene) |
| Weight |
0.50 kg ( 1.1 lb ) |
| Cable Outer Dimension |
Cable Outer Diameter: 3.4mm (± 0.2mm) |
| Conductor Gauge |
Copper wire (28 AWG) |
| Conductor Material |
Copper |
| Unit weight |
0.5 kg / 1.1 lb |
| Carton Lot |
10 pcs |
| Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
