| Model: UC9040 Specifications |
| Description |

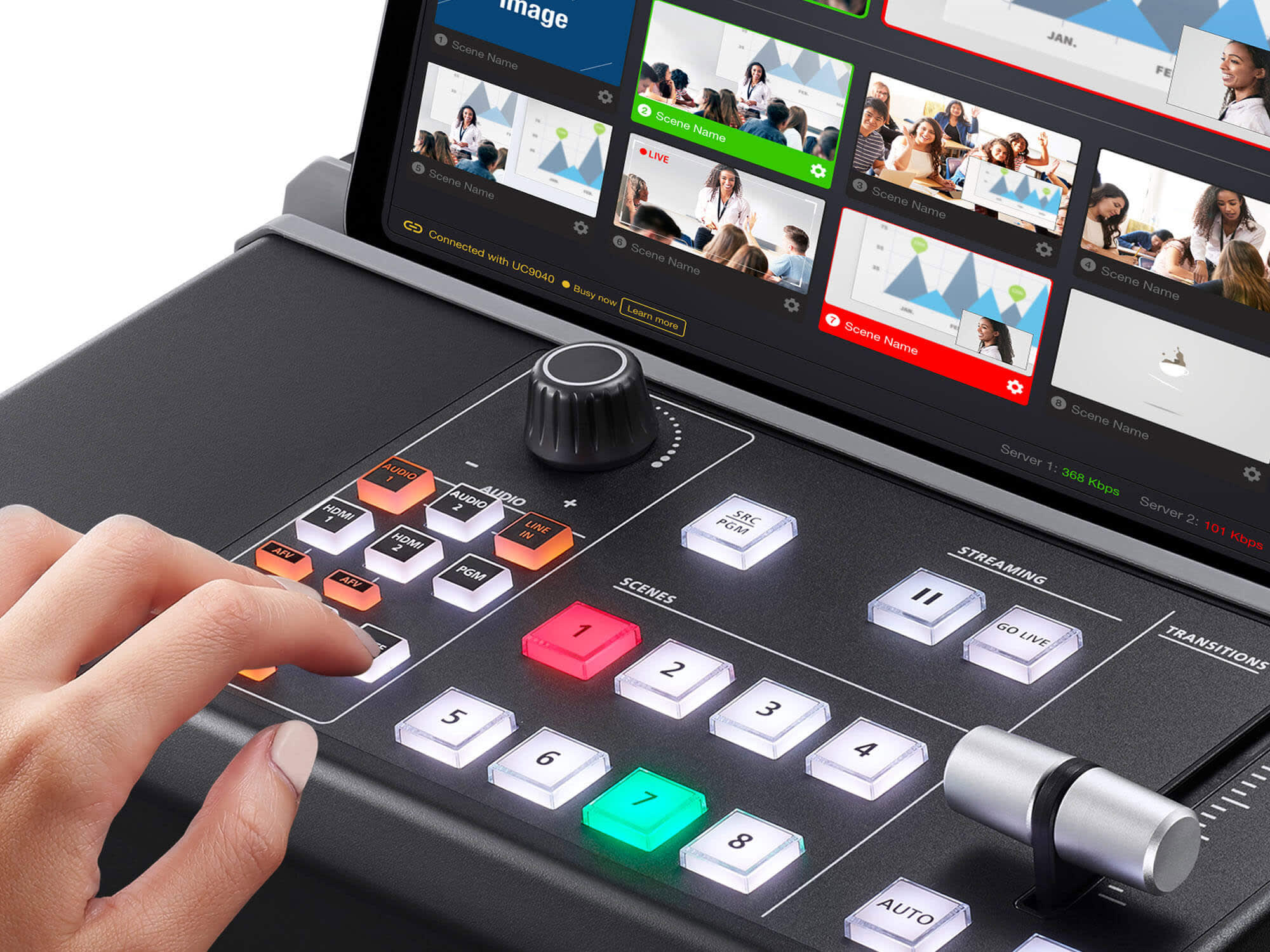

StreamLIVE™ PRO All-in-one Multi-channel AV Mixer |
| Video Input |
| Interfaces |
1 x 4K HDMI Type-A Female
(up to 2160p60, unencrypted)
3 x HDMI Type-A Female
(up to 1080p60, switcher, unencrypted) |
| Video Output |
| Interfaces |
1 x 4K Loop-Thru HDMI Type-A Female
(up to 2160p60, unencrypted)
1 x PGM HDMI Type-A Female
(up to 1080p60, unencrypted) |
| Video Sampling |
4:2:2 8-bit |
| Color Space |
4:2:2 YUV |
| Video Resolution |
HDMI 1 Input:
VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25, SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), WUXGA+(1680x1050@60), 1080p60/50/30/25, 2160p60/50/30/25
HDMI 2/3/4 Input:
VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25, SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), 1080p60/50/30/25
SRC/PGM HDMI Output:
480p60/50/30/25, 576p60/50/30/25, 720p60/50/30/25, 1080p60/50/30/25
HDMI Loop-Through Output:
VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25, SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), WUXGA+(1680x1050@60), 1080p60/50/30/25, 2160p60/50/30/25 |
| Audio Inputs |
| Interfaces |
HDMI captured inputs (stereo)
2 x 1/4" TRS jack (dual mono) |
| Audio Outputs |
| Interfaces |
HDMI outputs (stereo)
1x 1/8" TRS jack (stereo) |
| Network Protocol |
Dual-stream encoder supports direct live streaming to CDN server over ethernet using Real Time Messaging Protocol (RTMP/RTMPS)
-------------------------------------------------------
Video Encoding
Format: H.264
Bit rate: 512Kbps~10Mbps
Color Format: YUV420
Resolution: 1080p30/25, 720p60/50/30/25, 480p60/50/30/25
-------------------------------------------------------------------
Audio Encoding
Format: AAC
Sampling rate: 48kHz
Bit rate: 128kbps |
| Recording Storage |
Max. video resolution: 1080p30/25
File format：MP4
Support media: USB 3.x compatible mobile drive (HDD / SSD) or flash drive, at least 32GB of free space |
| Connection |
2x USB 3.1 Gen1 Type-A Female (blue)
1x USB Type-C
1x GbE LAN port |
| Environmental |
| Operating Temperature |
0 - 40 ºC |
| Storage Temperature |
-20 – 60 ºC |
| Humidity |
0 - 80% RH, Non-Condensing |
| OS Support |
• iPad Pro (3rd gen or later) with iOS 11 and above
The following iPad with iOS 11 and above (Additional Apple Lightning USB 3 Adapter is required):
• iPad Pro (1st and 2nd gen) • iPad (5th gen or later) • iPad Air (3rd gen or later) • iPad Mini (5th gen or later) |
| Power |
| Maximum Input Power Rating |
DC12V, 7.5A |
| Power Consumption |
DC12V:17.37W:184BTU |
| Physical Properties |
| Housing |
Metal |
| Weight |
1.85 kg ( 4.07 lb ) |
| Dimensions (L x W x H) |
28.85 x 18.99 x 9.66 cm
(11.36 x 7.48 x 3.8 in.) |
| Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
