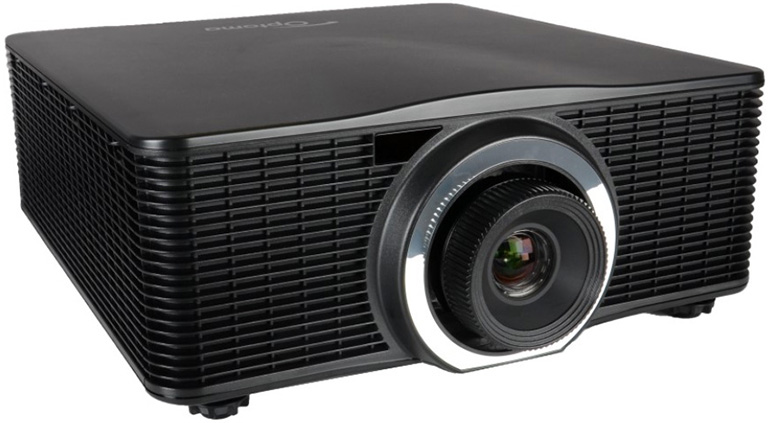

| Model: ZU650+ Specifications |
| Description |
WUXGA Professional Install Laser Projector |
| Display Technology |
Single DMD, 0.67" WUXGA DMD, Type A, DC3 DLP® Technology by Texas Instruments™ |
| Resolution |
WUXGA 1920 x 1200 |
| Brightness |
6000 center lumens (5500 ANSI lumens) |
| Contrast Ratio |
2,000,000:1 (Extreme black enabled) 2000:1 (full on/full off) 250:1 ANSI |
| ANSI Contrast |
250:1 ANSI |
| Lamp Life2 |
(hrs) |
| Throw Ratio 3 |
0.75:1~5.5:1 (interchangeable lenses) |
| Zoom Type |
Optical Zoom 1.26x~1.9x, Digital Zoom -5% V/H ~ +40%V/H |
| Lens Shift |
±100% Vertical ±30% Horizontal |
| I/O Connectors |
Input
1x HDMI (version 1.4) (with locking screw)
1x DVI-D (only support digital signal)
1x VGA (D-Sub 15pin) (Computer In)
1x HDBaseT
1x Component (Y/Pb/Pr)
Output
1x VGA Out (Support VGA loops through to monitor) (Monitor Out)
Control
1x RS232 (D-sub 9 pin) (PC Control)
1x Wired in (3.5mm phone jack) (Remote In)
1x Wired out (3.5mm phone jack) (Remote Out)
1x USB type A (for WiFi dongle purpose)
1x Mini USB (for LAN FW upgrade only) (Service)
1x IR Receiver (On the Front side and |
| Speaker (Watts) |
10W |
| Keystone Correction |
±20° Vertical and Horizontal |
| Weight |
40 lb (18 kg) without lens |
| Dimensions (W x H x D) |
19.1” x 20.1” x 7.7” (485 x 510 x 196 mm) |
| Aspect Ratio |
16:10 (Native), 16:9, 4:3, Auto |
| Projection Screen Size |
50" ~ 300" |
| Projection Distance |
2.6'–115' (0.8~35 m) |
| Projection Lens |
(No standard lens supplied) 5x lenses to choose from. |
| Uniformity |
85% |
| Maximum Resolution |
WUXGA (1920 x 1200) |
| Computer Compatibility |
UXGA, SXGA, XGA, SVGA, VGA, WXGA, HD, WUXGA, Mac |
| Video Compatibility |
SDTV / EDTV / HDTV |
| Noise Level (Eco mode) |
35 Typical (570W) 33 Eco (300W) |
| Noise Level |
35 Typical (570W) 33 Eco (300W) |
| Power Supply |
AC input 100–240V @ 50–60 Hz, auto-switching |
| Power Consumption |
W ±15% Max (Bright), 300W ±15% Max (ECO) |
| Operating Conditions |
41~104°F (5~40°C) |
| Security |
Kensington® lock port, security bar |
| Remote Control |
IR and wired remote |
| Standard Accessories |
AC power cord, VGA cable, remote control, batteries, multilingual CD-ROM user’s manual, basic user manual, and warranty card |
| Optional Accessories |
Universal ceiling mount, Optoma screen, wireless HDMI system, Optional lenses |
| Optional Wireless |
No |
| Warranty |
3 Years |
| Projection method |
Front, rear, ceiling mount, table top |
| Warranty |
3 year or 20,000 hour light source warranty (whichever comes first), 3-year Optoma Express advance exchange warranty on the projector. |
| Wireless specification |
| Range (Typical) |
HDMI system: WHD200, HDCast PRO - BLACK |
| Compliance |
WHD200 (Source lock on), HDCast PRO - BLACK, Chromecast™, FireTV™ Stick |
